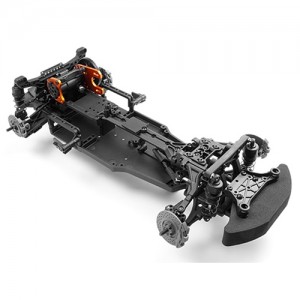

This is HPI Racing 1/10 2WD Stage-D10 Creator Edition Drift Car Kit EP. The Stage-D10 Creator Edition delivers a completely built drift chassis, ready for you to add your own choice of body, wheels, tires, and electronics! This is the purest form of RC Drift that is waiting only for YOUR finishing touches to make it into whatever Driftmachine you can dream of!
The Stage-D10 Creator Edition gives you HPI Racing's all-new, purpose-built 1/10th scale 2WD RWD drift chassis, ready to become the drift car you want to build. Developed from the ground up over three years, the Stage-D10 has been tested across multiple surfaces by drivers ranging from RWD newcomers to experienced RC drifters. That testing helped us refine the chassis, add new features and develop a box stock setup that gives you a great starting point for your own build.
And this isn't a cut-down version of the Stage-D10. The Creator Edition chassis is fully assembled to the same specification as the RTR, complete with the huge range of adjustment and tuning possibilities built into the platform. Add your choice of electronics, body, wheels and tires and you're ready to create your own Stage-D10.
New to RWD drifting? Start with a proven chassis setup and build around it. Already know your way around a drift chassis? The Stage-D10 gives you the base for almost any setup you want straight from the box, with no long list of option parts required. Underneath, there's a serious amount of adjustment waiting to be explored. So start creating!
Adjustable camber links and toe block options combine with multiple front and rear roll centre and camber gain positions. Wheel hex spacing can be increased by 1mm or 2mm, while wishbone placement allows the wheelbase to be adjusted from 246mm to 264mm.
The steering system features fully adjustable Ackermann geometry, with forward, backward, up and down adjustment. There are also four servo mounting positions, giving you even more scope to change the steering setup. Shorty battery packs can be mounted in mid or rear positions, allowing you to experiment with weight distribution and find the balance that suits your driving.
Feature:
- Purpose-built 1/10th scale 2WD RWD drift chassis
- Fully assembled chassis built to RTR specification
- Huge range of chassis setup and tuning options
- Adjustable 246 to 264mm wheelbase
- Adjustable front and rear camber links
- Adjustable toe block options included
- Multiple front and rear roll centre and camber gain positions
- Oil-filled threaded-body coilover shocks
- Alternative shock pistons included
- Fully adjustable Ackermann geometry
- Four servo mounting positions
- Adjustable wheel hex spacing with 1mm and 2mm click-in spacers
- Rotating front and rear brake disc hex adaptors
- Adjustable and removable scale brake calipers
- Adjustable battery mounting with mid and rear positions including shorty options
- Over 100 rear motor positions
- 3 or 4 gear gearbox configurations included
- Reversible motor direction for over 200 possible drivetrain configurations
- 2.6 internal FDR
- Sealed composite geared rear differential
- Multiple-position gyro mounting bracket
- Adjustable rear ESC mounting plate
- Integrated chassis wiring guides
- Servo saver and solid servo arm options included
- Motor fan mounting bar
- Rear chassis diffuser
- HPI magnetic body mounting system with 3x10mm N52 magnets, composite locating surrounds and 10mm steel ball mounts
- Aerocatch-style screw-lock mounting option for pre-drilled bodies
- Conventional body post mounting options included
- Ready for your choice of electronics, body, wheels and tires
Specification:
- Length: 390mm
- Height: 75mm
- Width: 190mm
- Wheelbase: 246 to 264mm (255mm standard setup)
Include:
- HPI Racing 1/10 2WD Stage-D10 Creator Edition Drift Car Kit EP (1 set)
Required:
- 1/10th scale 190 or 200mm wide car body
- Touring car wheels & drift tires
- 2-4-channel surface RC radio system
- Steering servo
- Electronic Speed Controller
- Drift Gyro
- Motor
- Pinion gear
- 2S LiPo pack with XT-60 plug
- Charger
