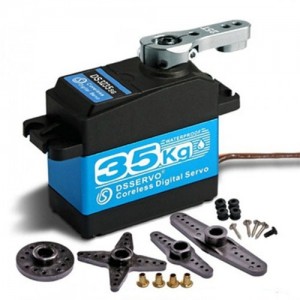

■구성품 : 사진의 구성품 모두 포함 (메탈 서보혼 + 플라스틱 서보혼 + 고정 볼트 등)

 ■사이즈 : 40 x 20 x 24 (H37)mm

 ■기타

   - 생활 방수

   - 서보혼 : 25T / 고정 볼트 M3

   - 기어 타입 : 스테인레스 & 알루미늄

   - 사용 전압 : 5.0 ~ 7.4V

   - 토크 : 35kg/cm at 7.4V

   - 스피드 : 0.11 sec/60 degree at 7.4V

   - 무게 : 80g

   - 와이어 길이 : 30cm

DS3235SG 35KG High Torque Coreless Waterproof Digital Servo w/Metal & Plastic Servo Horn (180 Degree)

Features
-Suitable for: 1/10 1/8 scale RC Crawler / Buggy / Truck and any application where waterproof standard servos.
High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, control is more delicate and smooth operation.
Full waterproof servo to maintain good water tightness in wet conditions.
The Coreless motor provides high speed, response, incredible efficiency and low power consumption.

Electrical Specification:
Operating voltage range: 5-7.4V

Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm

Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Dead band width: 3 μsec
Operating frequency: 50-330Hz

Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 300mm
Motor: 3-pole(s)
Waterproof performance: IP66
