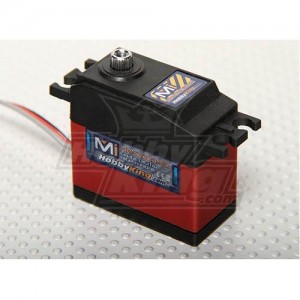

The HK Mi Series servos represent the next break through in high precision servo technology. Using Magnetic Induction, rather than a potentiometer, for an unsurpassed level of accuracy and performance.
Specs:
Voltage: 4.8v / 6v
Speed: 0.12sec/60deg (4.8v) - 0.10sec/60deg (6v)
Torque: 8.0kg.cm (4.8v) - 10kg.cm (6v)
Size: 40.2mm x 20.1mm x 39.2mm
Weight: 52g
Gear Train: Full Ti-Al alloy gears Gears
Mi : Magnetic Induction, uses a Magnetic Rotary Encoder in place of a traditional potentiometer (invented in 1877). Magnetic Rotary encoders have a longer life and suffer less wear.
|
| | Weight (g) | 52 | | Torque (kg) | 10 | | Speed (Sec/60deg) | 0.1 | | A(mm) | 44 | | B(mm) | 40 | | C(mm) | 40 | | D(mm) | 20 | | E(mm) | 55 | | F(mm) | 29 |
|
|
|
