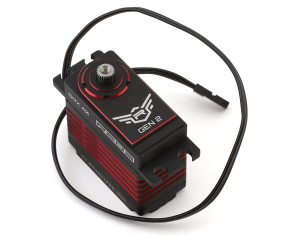

Servo Overview:
REDS SRX 40 Gen2 High Voltage (HV) Digital Brushless Ultra High Torque Servo. This is a high-performance servo designed for 1/8 nitro and electric buggies, truggies, and various on-road applications. This servo offers cutting-edge features and a durable construction, making it an ideal choice for demanding applications. Made with titanium and steel gears, the SRX 40 Gen2 offers maximum durability for long-lasting performance you can count on. REDS crafted this servo with an updated electric motor, specifically engineered to reduce operating temperatures. The addition of the updated motor ensures consistent performance even in the harshest of conditions. In a strategic collaboration with FlySky, the SRX 40 Gen2 integrates the i-BUS2 communication system, allowing users to easily set up the servo with their radio for advanced real-time data directly from their transmitter. This collaboration streamlines the tuning process and gives drivers greater control on the fly.
Features:
- Operates efficiently across a wide voltage range from 6V-8.4V
- Titanium and steel gears for long-lasting performance
- Designed for superior heat dissipation
- Flysky i-BUS2 Communication allows for fine-tuning on the fly
- CNC-machined gears ensure precise engagement and longevity
- High torque output
- Convenient carrying case with REDS logo
Specifications:
- Suggested Application: 1/8 On-Road
- Input Voltage: 6-8.4V
- Speed:
- @6.0V: 0.092sec/60°
- @7.4V: 0.074sec/60°
- @8.4V: 0.065sec/60°
- Torque:
- @6.0V: 543oz-in (39.1kg-cm)
- @7.4V: 559.7oz-in (40.3kg-cm)
- @8.4V: 695.8oz-in (50.1kg-cm)
- Motor: Brushless
- Dimensions(LxWxH): 1.61x0.98x1.52in (41x25x38.7mm)
- Weight: 2.93oz (83g)
- Operating Spline: 25T
Includes:
- (1) SRX 40 Gen2 HV Digital Brushless Ultra High Torque Servo
- (1) REDS Carrying Case
- Mounting Hardware
