Feature:

• One-piece chassis design for consistent handling in all conditions and superior tweak resistance
• Narrow chassis shape for minimum chassis drag during cornering
• Rear pod concept on top of chassis for minimum drag and superior tweak resistance
• Adjustable pod angle controlled by set screw at the rear of chassis for fine tuning
• Rear spring location for maximum forward traction with great adjustability and low CG
• Rear droop adjustment through rear bump spring tension. The spring sits in a special composite adjuster
• Universal rear spring nut holder works for both conical and linear springs
• 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs
• Ultra-light, low CG bulkheads are foundation of the pod system
• Extra forward center pivot position for maximum adjustability
• Low pivot holder and small diameter pivot ball offer low roll center positions and great adjustment range
• Carbon Fiber top plate for center shock and side damper mountings
• Rear carbon side spring brace aligns with the pod geometry
• Composite bushings press into carbon fiber parts for secure and reliable hardware installation
• Center dampener with 1-hole piston provides exceptional bump handling, low maintenance, and maintains a low CG
• Aluminum lower arm pivot balls included in the kit for weight savings
• Thick carbon fiber shims included for the widest possible range of front ride height settings
• Hollow front kingpins improve lubrication and dampening of the front suspension
• Carbon fiber, floating servo holder included as option to the fixed chassis mounting
• Floating servo holder compatible with two servo sizes for different weight distributions
• Aluminum steering blocks with special Teflon insert for minimal friction and smooth movement
• Ackermann positions for optimal steering characteristics as well as optional eccentric axle with 1mm less trail for greater tunability
• Long, Steel steering link turnbuckles for maximum reliability on the wider XP10 platform
• 2.0mm side braces with a narrow width design save weight and leave space for electronics
• Side brace mounting posts uses M2.5 screws for weight savings
• Aluminum side link holders with 2-pin design for more rigidity and maximum tweak resistance
• 2-pin carbon fiber side link plates integrate with aluminum holders for reliable alignment and offer 2 side link front pivot mounting positions for maximum adjustability
• Battery backstop & chassis holes to accommodate for both standard shorty and mid size battery packs
• Center dampener holder features adjustable back stop shim & screw to perfectly set the play for the battery pack
• Wide rear wheel hubs for a wide range of track width adjustability and optimal clamping of rear axle
• Carbon Fiber front bumper aligns with chassis shape

Include:

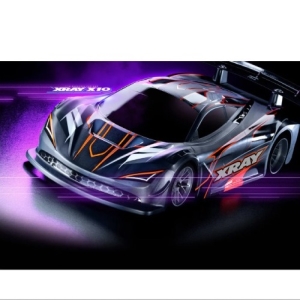

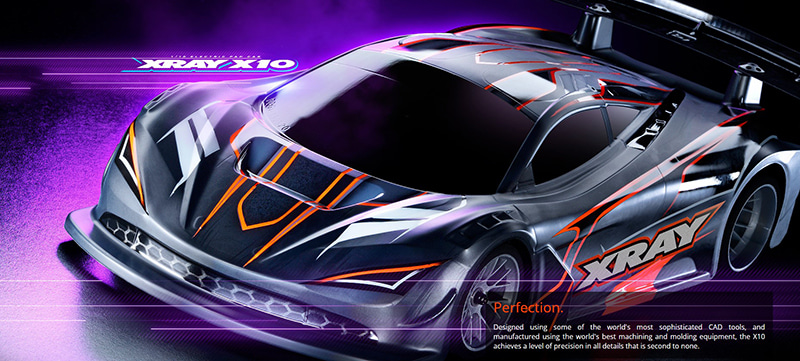

• Xray X10 2026 Specs 1/10 Pan Car GT Car Kit EP (1 set)

Required:

• Motor

• Battery

• ESC

• Tires

• Body

• Steering servo

• Radio equipment
